New design iml label in molding labeling injection on plastic plate basin
New design iml label in molding labeling injection on plastic plate basin
New design IML label – This innovative in molding labeling solution is specifically designed for injection on plastic plates and basins. The label is placed into the mold cavity before the molten plastic is injected, fusing permanently with the product surface during the molding cycle. The result is a seamless, peel‑proof, and scratch‑resistant decoration that enhances the appearance and durability of plastic tableware and household items. Our new design collection offers vibrant, high‑resolution graphics that can be customized to match any brand or theme, making your products more attractive and competitive in the market.
Product description
| Product name | In mold label sticker |
| Label material | OPP |
| Surface | Glossy label |
| Size | 10cm,12cm,14cm.16cm,18cm,20cm |
| Gravure print | |
| Thickness | 18 micron |
| Shape | piece |
| MOQ | 50000 pieces |
| Application | Plastic plate basin |
| Package | Plastic film+carton+plastic pallet |

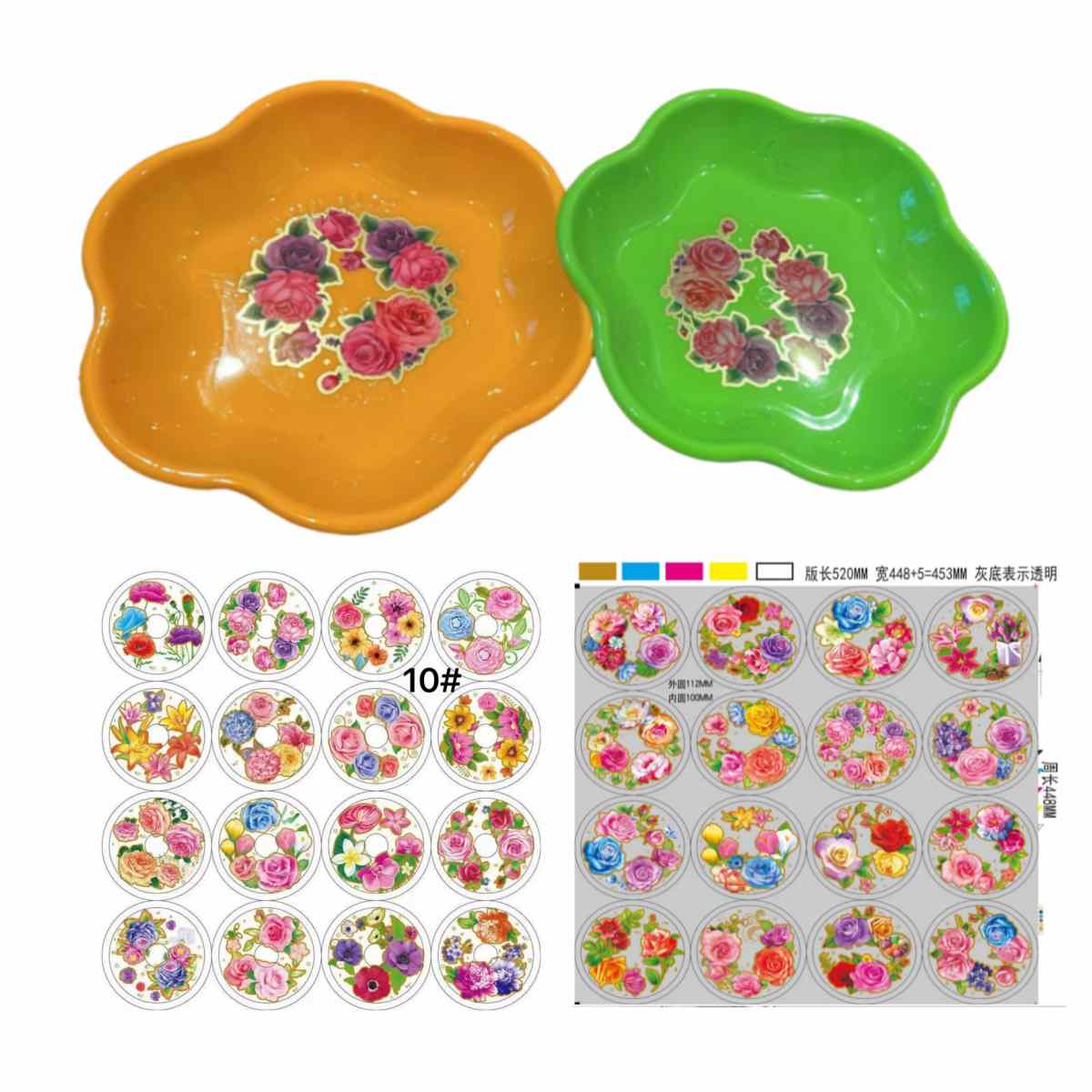

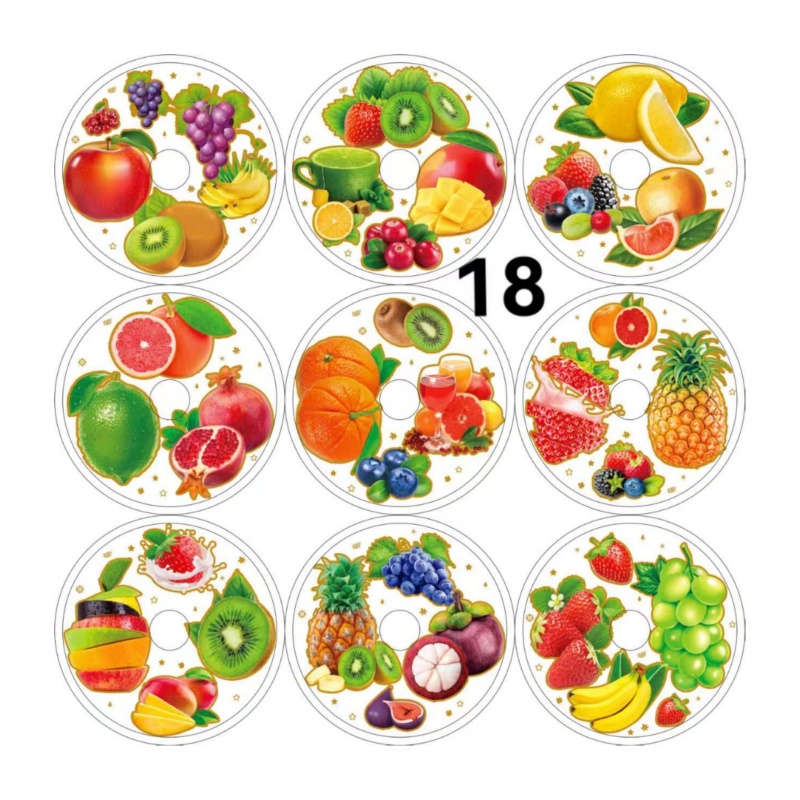

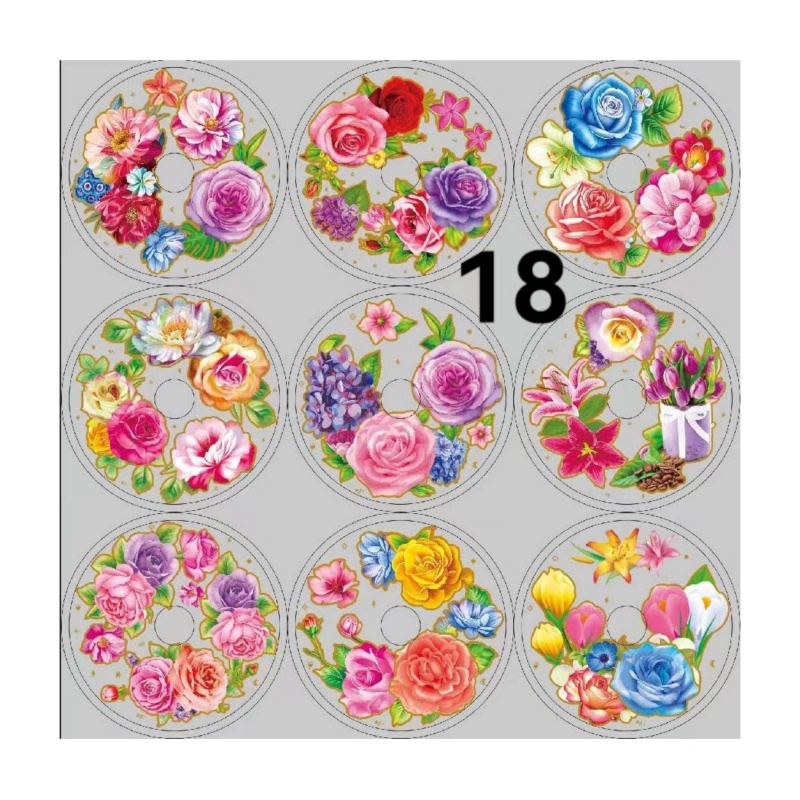

Product show
IML in mold label FAQ
Q:What are the influencing factors of the cut size of the IML in mold label and how to measure it correctly?
1) Mainly shrinkage. The label material and the shrinkage ratio of the injection molding machine will all affect the effect after injection molding. It is necessary to measure and test about the product material, label thickness and the shrinkage of the injection molding machine itself, and finally achieve the perfect effect, which can be completely seamless.
2) Make the correct cut size according to the product. It is best if the customer can provide product samples, and then we can make the cut size based on the samples.
Q:The reason why the IML label cannot be attached to the mold/Reasons for insufficient static electricity of IML labels:

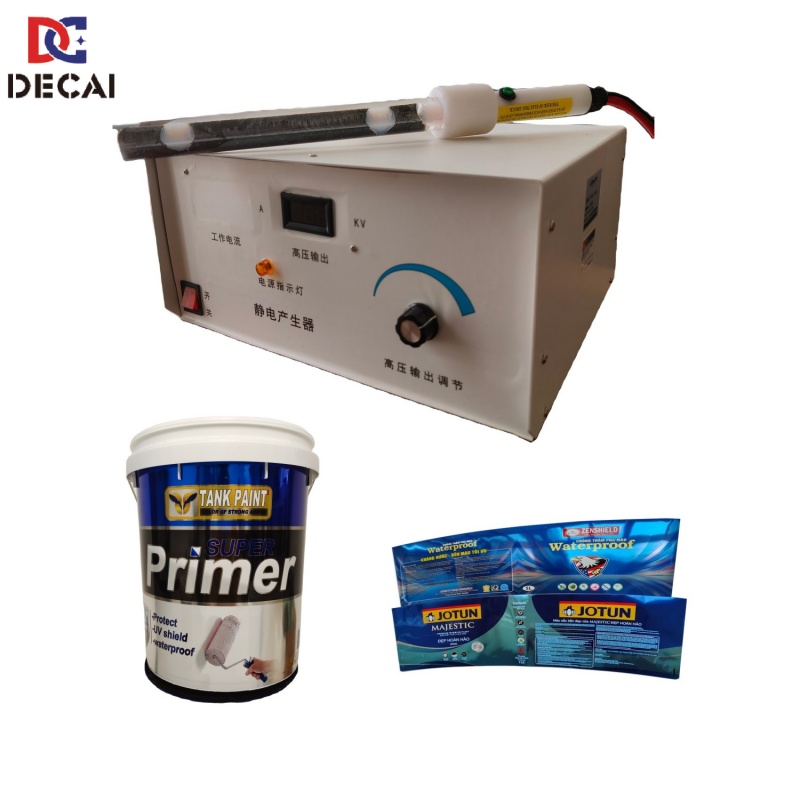

1) There is no static electricity added to the label when it leaves the factory. It is equipped with an static charger/electrostatic generator to add static electricity.
2) The environment is humid and static electricity will run away during shipping. Equipped with an electrostatic device/static charger.
3) If you cannot add static electricity using an electrostatic generator, it may be related to the material of the label. Contact us to confirm the reason.
4) If it is manual injection molding, try using a wet rag and adding water.
5) If it is a robot, it may be caused by static electricity removal at the factory.
Q:The color of the IML label becomes darker after injection molding:
1) The base color of the product is too dark, you can use two layers of white when designing.
2) Thicken and deepen the white ink, or use high-concentration white.
Q:The label color is different from the design file:
1) The customer provides an electronic draft or sample label. After the customer confirms the color and size, the maximum difference between the produced label and the design file is 5%.
2) Determine some spot color numbers according to the Pantone color card.

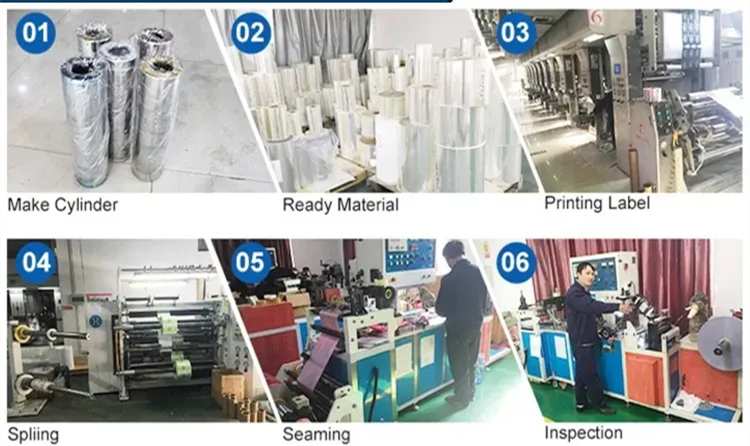

Production process
1. Cylinder Making (Gravure Plate Engraving)
The process begins with engraving a gravure printing cylinder. The customer’s custom design is transferred onto a copper‑ or chrome‑plated steel cylinder using advanced laser or mechanical engraving technology. The cylinder surface is etched with tiny cells that hold ink, corresponding to the design's pattern. This cylinder serves as the master plate for high‑volume, consistent printing.
2. Printing (Gravure Printing)
The engraved cylinder is installed onto a gravure printing press. The cylinder rotates through an ink bath, filling the engraved cells with ink, while a doctor blade removes excess ink from the smooth surface. The cylinder then presses against the OPP (or PP) film substrate, transferring the ink from the cells onto the film in the desired pattern. Multiple color stations are used to build up full‑color, high‑resolution designs with sharp details and vivid saturation.
3. Drying (Curing)
After each ink layer is applied, the printed film passes through a heated drying tunnel. Hot air evaporates the solvents from the ink, curing it firmly onto the film surface. This step ensures the ink is completely dry, preventing smudging or sticking during subsequent handling and ensuring excellent adhesion in the final injection molding process.
4. Slitting (Cutting)
Once the entire master roll is printed and dried, it is transferred to a slitting machine. The large roll is cut into smaller
rolls of specific widths according to customer requirements (e.g., 100mm, 120mm, 160mm widths). Precision slitting ensures clean,straight edges and accurate dimensions for easy loading into automated or manual IML equipment.
5. Quality Inspection
Each finished roll undergoes a thorough quality inspection. Key checks include:
* Color accuracy – compared against the approved color standard.
* Print clarity – no blurring, misregistration, or missing details.
* Surface defects – no scratches, bubbles, or contaminants.
* Adhesion test – ensures the ink layer is properly cured and bonded.
* Dimensional accuracy – width, length, and roll diameter are verified.
Any defective material is rejected or reworked to maintain consistent quality standards.
6. Packaging
After passing inspection, the IML label rolls are carefully packaged. Each roll is wrapped in protective film to prevent dust,
scratches, and moisture damage during storage and transit. The rolls are then placed into sturdy cartons, labeled with product details (size, design, batch number), and prepared for shipment to the customer.
Company profile
Decai Honorise is a leading manufacturer of heating transfer field, one-stop service comprehensive enterprise. The products involves the following major aspects:High-precision hot stamping silicone rubber roller and wheel、gravure printing rubber roller and various industrial rubber rollers,Thermal transfer film labels and in-mold labeling,Heat transfer machine and hot stamping machine.Integrating production, sales and R&D together. In strict accordance with printing industry standards for production and management. We're own scientific formula, precise processing methods and superb grinding technology, we provide high-quality products with advanced production equipment and strong technical force.
Exhibition&Feedback
Package&Shipment
FAQ
1.Are you a manufacturer?
2.Can you provide samples?
Yes, we can provide you samples for quality checking. Please let us know your requirements, then we can arrange samples according to your requirements. Our samples are free, but the delivery charge is on your side.
3.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
4.What is "IML"?
IML labels are a kind of decorative material that uses OPP/BOPP raw materials and prints customized design artwork on the raw materials through gravure printing technology. After the customer receives the IML label, when injecting the product, the label is placed in the film cavity of the product. Through injection molding, the label attached to the product is integrally formed, which has a good decorative effect.
5.This is the first time to buy the packaging, what information I need to provide in order to get a price?
1)Material of your product
5)If possiable pls send sample product to us
6.How can we contact you as soon as possible?
We are always available on Alibaba.com, WhatsApp, Wechat. You can also reach us by email. You are welcome to send us any questions anytime and we will reply you.
Whatsapp/Wechat:+8618089283168
