Heat transfer printing film decal for plastic paint bucket PET material film
Heat transfer printing film decal for plastic paint bucket PET material film
Our heat transfer printing film decal is a premium-grade solution designed for decorating plastic paint buckets made from PET material film. This innovative film allows for high-resolution, full-color artwork, logos, and designs to be permanently transferred onto the bucket’s surface with exceptional durability and vibrancy.
Product description
| Product name | Heat transfer label/film for plastic |
| Material | PET |
| Application product | Plastic product print |
| Surface | Glossy film |
| Printing type | Gravure print |
| Thickness | 20μm |
| Shape | In roll |
| Length | 500m/roll |
| Width | Max 120cm |

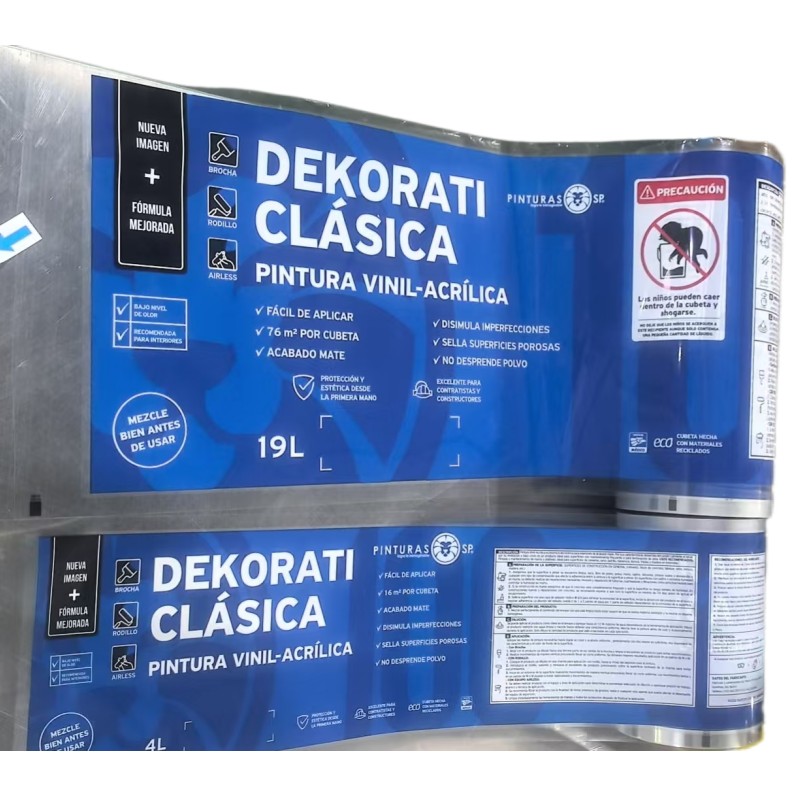

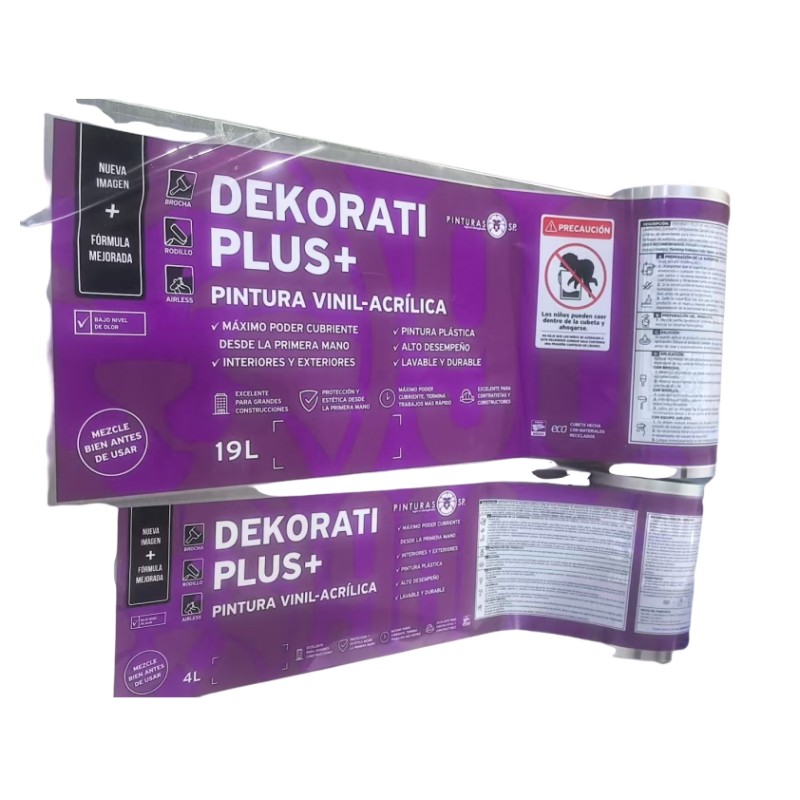

Product show
Applications in Industrial Printing
* PET Film Paint Buckets – Used for branding and labeling chemical containers, ensuring legibility and durability.
* PP/HDPE Plastic Barrels – Heat printing on industrial drums for product identification, barcodes, and safety warnings.
* Promotional & Packaging – Customized logos on bottles, containers, and storage units.

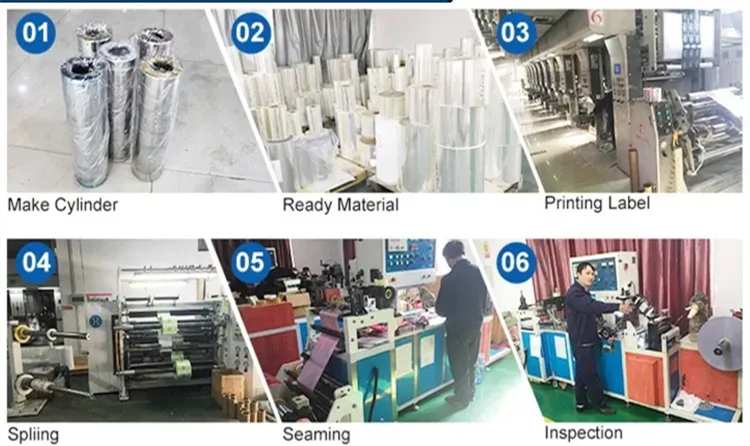

Production process
The manufacturing process of heat transfer film involves several precise steps to ensure high-quality, durable prints suitable for applications such as PET film paint buckets and PP/HDPE plastic barrels. Below is a detailed breakdown of the production stages:
1. Making the Cylinder (Gravure Engraving)
Design Preparation: The desired pattern or artwork is digitally designed and prepared for engraving.
Cylinder Engraving: A metal (usually copper or chrome-plated) cylinder is laser-engraved with the design, creating microscopic cells that will hold ink.
2. Printing (Gravure Printing)
Ink Application: The engraved cylinder rotates through an ink reservoir, picking up ink in its engraved cells.
Excess Ink Removal: A doctor blade scrapes off excess ink, leaving ink only in the engraved cells. Film Transfer: The cylinder presses against the PET or PP film, transferring the ink in the desired pattern.
3. Drying (Hot Air or UV Curing)
Hot Air Drying: The printed film passes through a drying tunnel where heated air evaporates solvents, ensuring the ink sets properly.
UV Curing (for UV inks): Some films use UV-curable inks, which dry instantly under ultraviolet light for faster production.
4. Cutting (Slitting & Sheeting)
Slitting (Roll Form): If the film is produced in large rolls, a slitting machine cuts it into narrower rolls of the required width.
5. Quality Inspection (QC)
Visual Check: Operators inspect for defects such as misprints, scratches, or uneven ink distribution.
Adhesion Test: A sample is heat-pressed onto a substrate (e.g., plastic barrel) to verify bonding strength.
Color Accuracy: Spectrophotometers ensure colors match the approved design. Durability Testing: Some films undergo abrasion, chemical, or water-resistance tests.
6. Packaging
Roll Packaging: Films in roll form are wrapped in protective plastic, labeled, and boxed.
Company profile
Decai Honorise is a leading manufacturer of heating transfer field, one-stop service comprehensive enterprise. The products involves the following major aspects:High-precision hot stamping silicone rubber roller and wheel、gravure printing rubber roller and various industrial rubber rollers,Thermal transfer film labels and in-mold labeling,Heat transfer machine and hot stamping machine.Integrating production, sales and R&D together. In strict accordance with printing industry standards for production and management. We're own scientific formula, precise processing methods and superb grinding technology, we provide high-quality products with advanced production equipment and strong technical force.

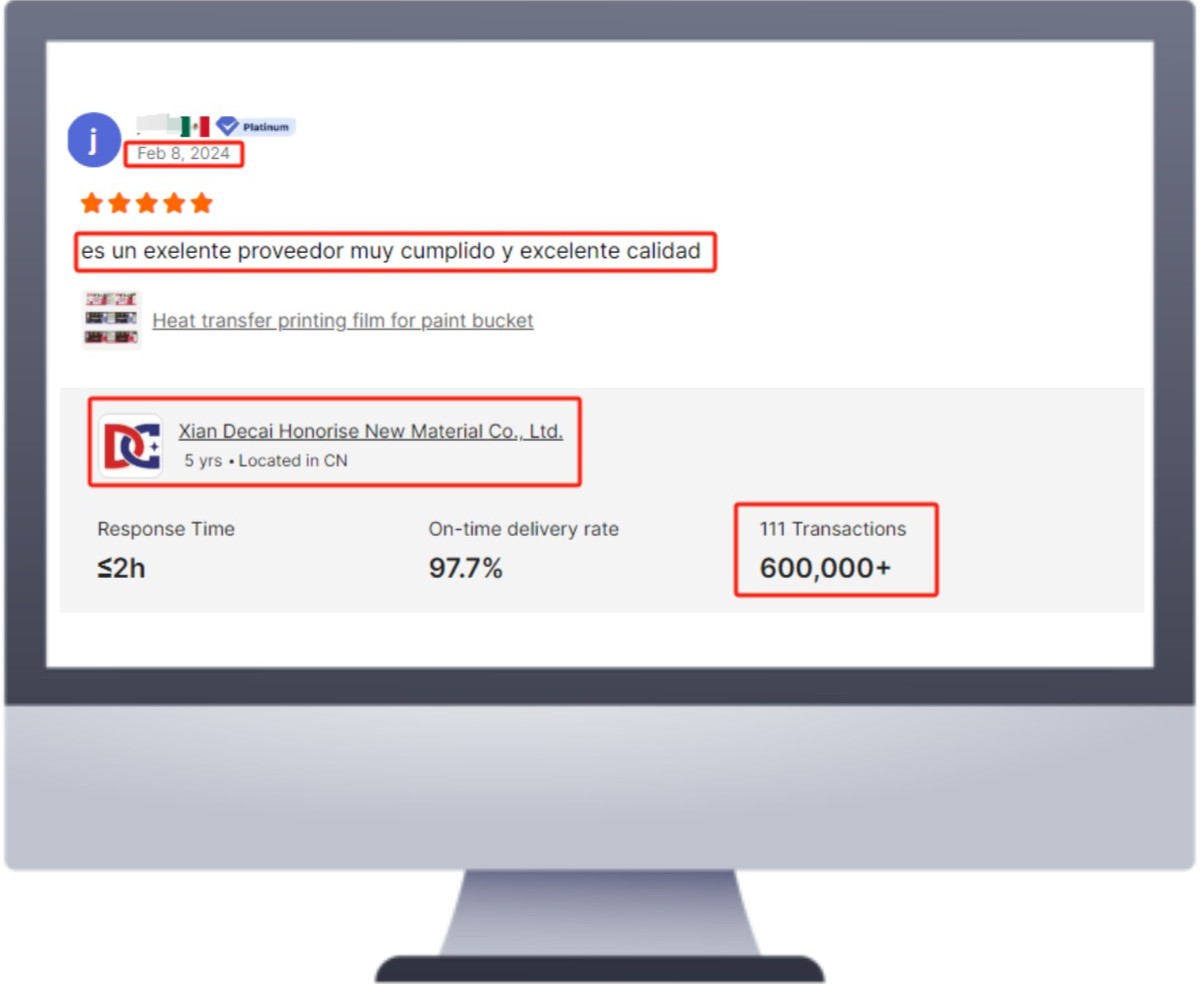

Exhibition&Feedback
Package&Delivery
FAQ
1.Are you a manufacturer?
2.Can you provide samples?
Yes, we can provide you samples for quality checking. Please let us know your requirements, then we can arrange samples according to your requirements. Our samples are free, but the delivery charge is on your side.
3.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
4.What is "heat transfer printing' ?
Heat transfer printing utilizes high-quality gravure printed on a clear carrier that are permanently bonded to a part by the heat and pressure of the heat transfer process. Since heat transfer label are preprinted, multicolor images are transferred to the part in one pass.
5.How to use heat transfer printing ?
1)firstly you must have a heat transfer printing machine, we also produce this machine
3) your product should have smooth surface(flat or round conical shape)
6.This is the first time to buy, what information I need to provide in order to get a price?
1)Material of your product
2)Size of the film /your product
3)do you have own orginal design?
4) Order quantity
5)If possiable pls send sample product to us
7.How can we contact you as soon as possible?
We are always available on Alibaba.com, WhatsApp, Wechat. You can also reach us by email. You are welcome to send us any questions anytime and we will reply you.
