Cost effectiveness heat transfer film label for pp plastic cup with conical
Thermal heat transfer film label for pp plastic cup with conical
Thermal heat transfer film labels are widely used for decorating and branding PP plastic cups with conical designs (e.g.,disposable cups, yogurt cups, or dessert containers). This method ensures high-quality, durable prints while maintaining the cup’sstructural integrity.
Product description
| Product name | Heat transfer film plastic cup |
| Material | PET |
| Size | According your design |
| Application | Plastic product |
| Surface | Glossy film |
| Printing type | Gravure printing |
| Thickness | 20μm |
| Shape | in roll |
| Length | 400m/roll |
| Width | Max 120cm |

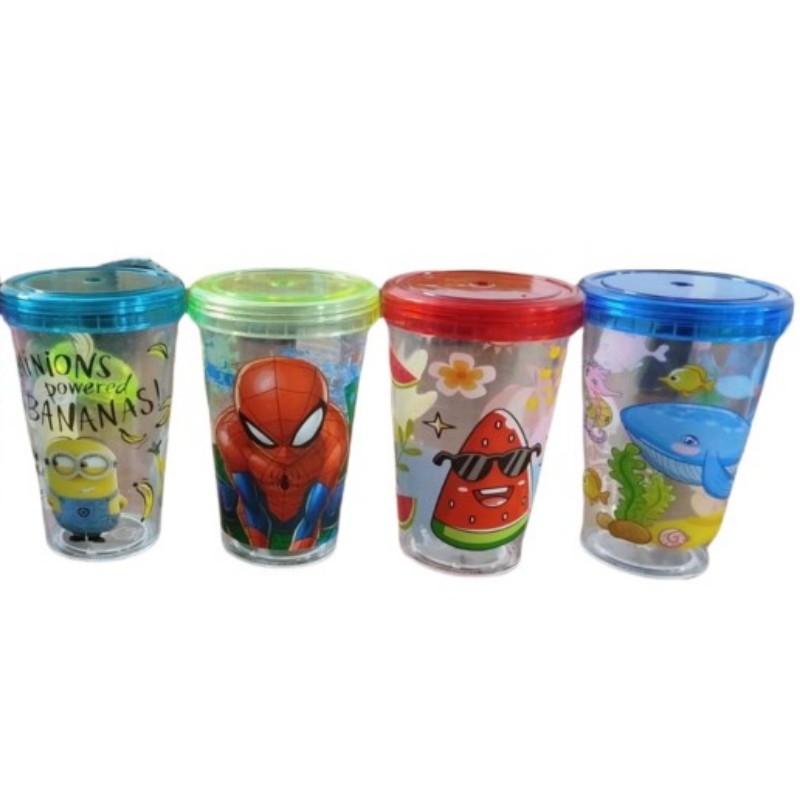

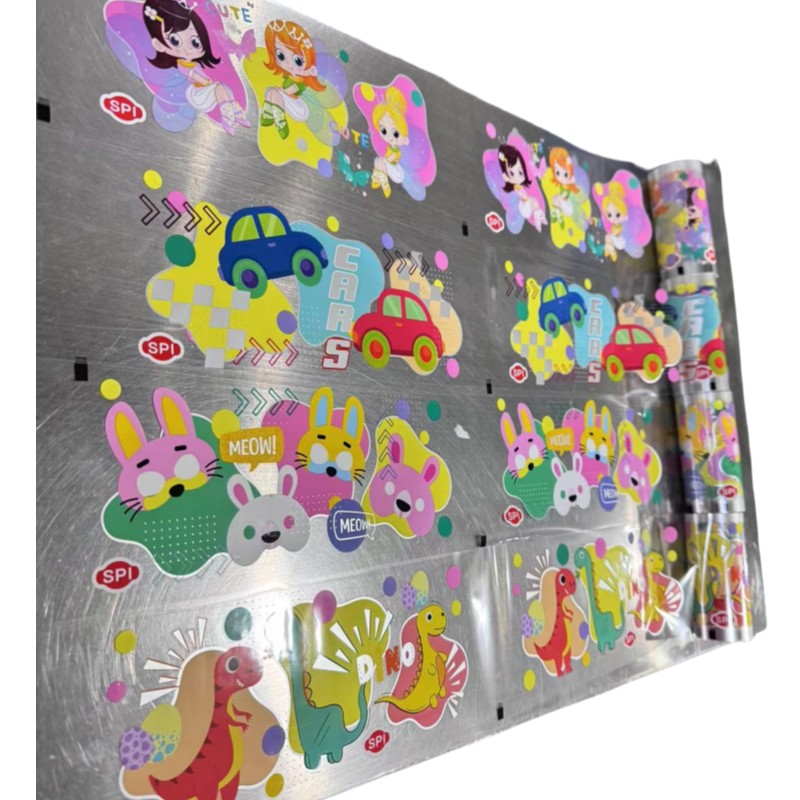

Product show
1) Your product color is too dark,and the white base of the thermal transfer film is not thick, resulting in the product colorshowing through after printing. You can use 2 or even 3 layers of white on the design artwork.
2）Thicken and deepen the white ink,or use high-concentration white.
Q:How to ensure that the colors of design drawings are more standard?
1) For the electronic draft, the customer confirms the color and size. If there is a 5% difference between the product and the design draft, the customer will be informed in advance.
2) Use Pantone color cards to compare color numbers with customers.
Production process
| Make cylinder(Gravure cylinder preparation) | Engraving: A gravure cylinder is engraved with the desired design using laser or chemical etching techniques. Chrome Plating: The cylinder is chrome-plated to enhance durability and ensure precise ink transfer during printing. Inspection: The engraved cylinder is checked for defects to guarantee consistent print quality. |
| Printing(Gravure printing process) | Film Unwinding: A base film (typically PET or BOPP) is fed into the printing machine. Ink Application: The engraved cylinder transfers the design onto the film using solvent-based or water-based inks. Multi-Color Printing: Multiple cylinders are used for different colors, ensuring accurate color registration. |
| Drying(Ink curing&solvent evaporation) | Hot Air Drying: The printed film passes through a drying tunnel where hot air evaporates solvents, fixing the ink onto the film. UV or EB Curing (Optional): Some films use UV or electron beam (EB) curing for instant drying and enhanced durability. |
| Cutting(slitting&sheeting) | Slitting: The dried film is cut into narrower rolls of required width using precision slitting machines. Sheeting (Optional): For sheet-fed applications, the film is cut into individual sheets. |
| Quality inspection | Visual & Automated Inspection: The film is checked for defects such as misprints, scratches, or color inconsistencies. Adhesion Test: Ensures the film properly adheres to plastic bottles under heat and pressure. Durability Testing:Includes rub resistance, washing tests, and exposure to different environments. |
| Packaging | Roll Wrapping: Finished rolls are wrapped in protective film to prevent scratches and moisture damage. Boxing/Palletizing: Rolls or sheets are packed in cartons or palletized for shipment. Labeling: Each package is labeled with product details (size, color, batch number, etc.). |

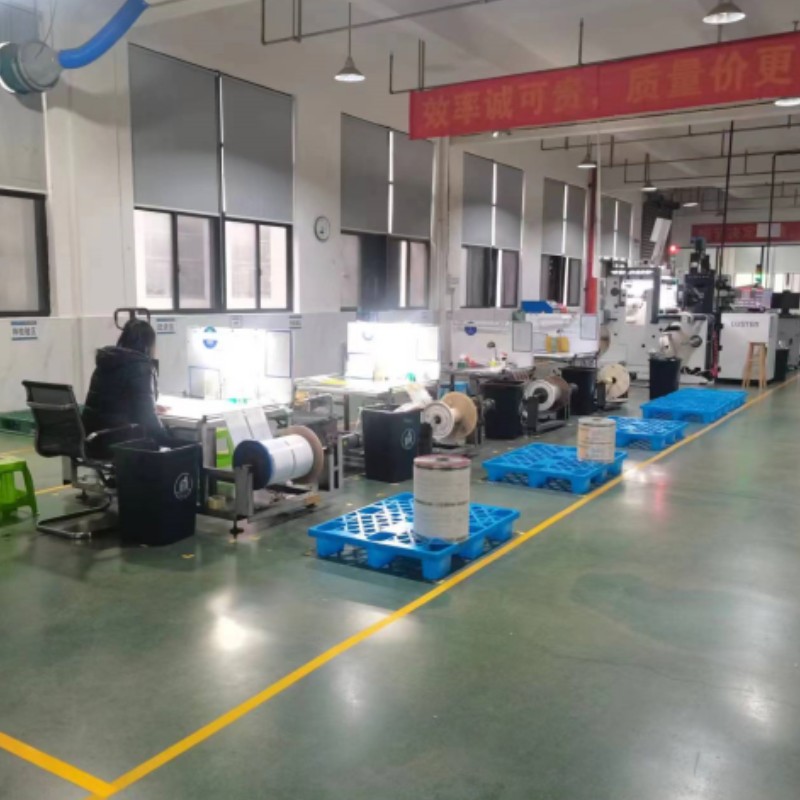

Company profile
Decai Honorise is a leading manufacturer of heating transfer field, one-stop service comprehensive enterprise. The products involves the following major aspects:High-precision hot stamping silicone rubber roller and wheel、gravure printing rubber roller and various industrial rubber rollers,Thermal transfer film labels and in-mold labeling,Heat transfer machine and hot stamping machine.Integrating production, sales and R&D together. In strict accordance with printing industry standards for production and management. We're own scientific formula, precise processing methods and superb grinding technology, we provide high-quality products with advanced production equipment and strong technical force.
Exhibition&Feedback
Packaging&Shipping
FAQ
1.Are you a manufacturer?
2.Can you provide samples?
Yes, we can provide you samples for quality checking. Please let us know your requirements, then we can arrange samples according to your requirements. Our samples are free, but the delivery charge is on your side.
3.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.

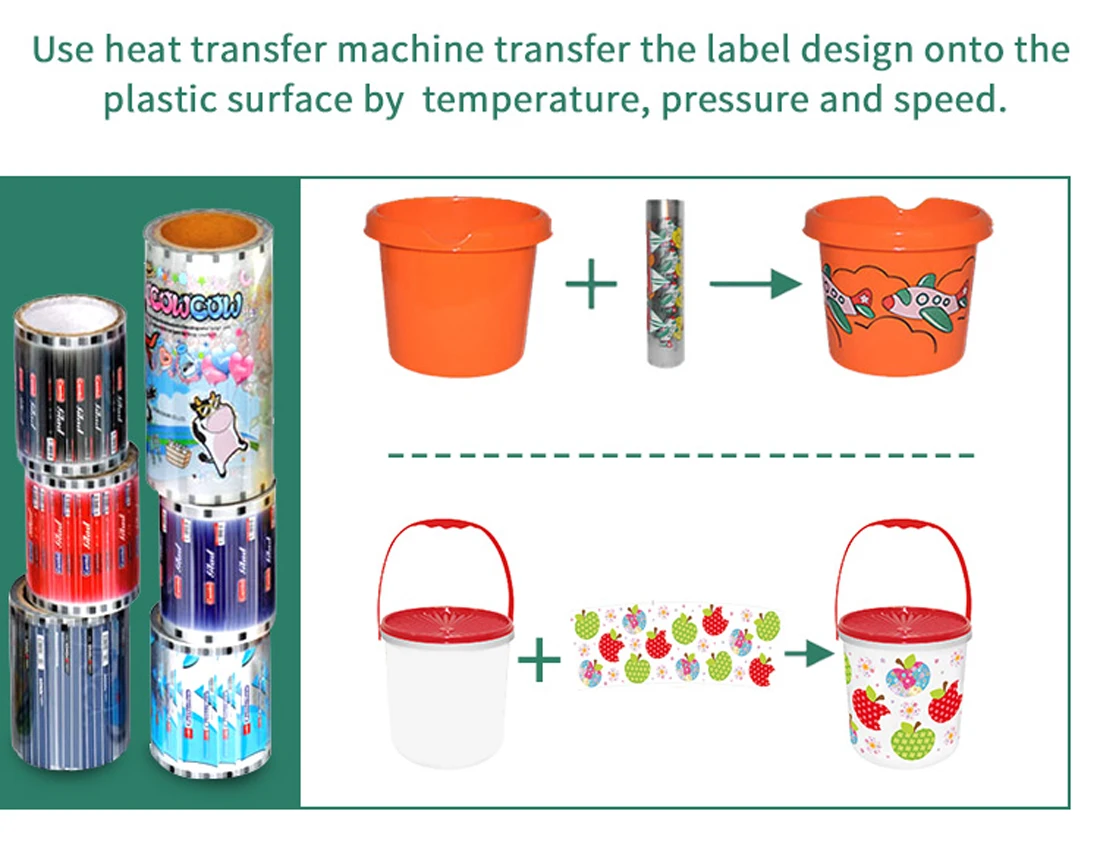

4.What is "heat transfer printing' ?
Heat transfer film uses PET materials and prints customized artwork on the PET materials through gravure printing technology. After the customer receives the heat transfer film, the pattern on the PET material is transferred to the surface of the product using the high-temperature printing of the heat transfer machine, thus forming a decorative effect.
5.How to use heat transfer printing ?
1)firstly you must have a heat transfer printing machine, we also produce this machine
3) your product should have smooth surface(flat or round conical shape)
6.This is the first time to buy, what information I need to provide in order to get a price?
1)Material of your product
2)Size of the film /your product
3)do you have own orginal design?
4) Order quantity
5)If possiable pls send sample product to us
7.How can we contact you as soon as possible?
We are always available on Alibaba.com, WhatsApp, Wechat. You can also reach us by email. You are welcome to send us any questions anytime and we will reply you.
