2022 Bending roller expander curve flattening roller arc rollers |

2022 Bending roller expander curve flattening roller arc rollers

Short Description:

Flattening roller arc rollers are also called Bending rollers. Flattening roller arc rollers are the best type of flattening effect so far. They are widely used in textile, printing and dyeing, papermaking, plastics, packaging, printing and other fields. It can be applied to both thin and thick substrates, especially for ultra-thin, ultra-soft, ultra-light, easy-to-stretch, and low-tension substrates, such as film, paper, silk, knitted fabrics, etc.

Product Name:: Bending roller expander curve flattening roller arc rollers

Raw Material:: Polyurethane(PU)

Roller Size: All of size can be customized

Application:: Different rubber rollers are used in different industrial machines

Feature: Antistatic, hydrolysis

Hardness:: 60-95 Shore A

Price:: Depend on size

Delivery Time:: 15-20 days after paid

Color:: yellow,Black, orange,green or custome required

Brand Name:: DECAI

MQQ:: 20PCS

Customized specifications: Support

Terms of payment:: T/T,WU,Trade assurance by Alibaba

Send email to us Download as PDF

Product Detail

Video

Printing and dyeing bending roller is also known as: curved roller, flattening roller, bending roller, printing and dyeing bending roller, printing and dyeing rubber roller, rubber roller, papermaking rubber roller, nitrile rubber roller, textile rubber roller, printing rubber roller, coating machine roller, Bending rolls, expanding rolls

Types of rubber sleeves: ordinary rubber sleeves, wear-resistant rubber sleeves, special rubber sleeves, EPDM rubber sleeves, neoprene rubber sleeves, silicone sleeves
Rubber sleeve color: red, white, black, green

Rubber flattening roller arc rollers application: widely used in textile, printing and dyeing, printing, printing, papermaking, metallurgy, conveying, plastic, leather, tobacco, pharmaceutical, wood, packaging machinery and other industrial machinery, with high wear resistance, high elasticity , anti-oxidation, anti-corrosion, high temperature resistance, strong acid and alkali resistance, strong solvent resistance

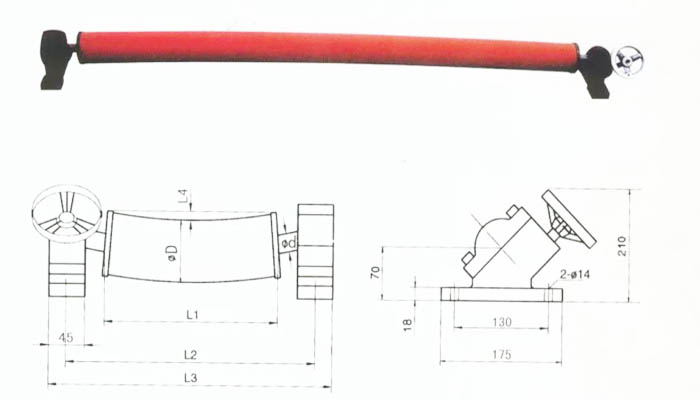

Structural features: The diameter of the hose is Φ80-Φ150mm, the width of the door: 60-400cm; the bearing is installed inside the hose, and the rotational torque is small; the rubber surface is smooth, and has no adverse effect on the substrate; the stretching angle can be adjusted freely.

Bending rollerflattening roller arc rollers are mainly composed of rubber strip, aluminum alloy roller body, mandrel, inclined wheel, inclined mouth guard and axle seat.
